Design Bathrooms in Moddy
Moddy is software suitable for OTs and tech officers to design bathrooms.
Why Use Moddy to Draw Bathrooms?
Place Grabrails in Seconds
Such as drop-down rails, horizontal rails, vertical rails and more

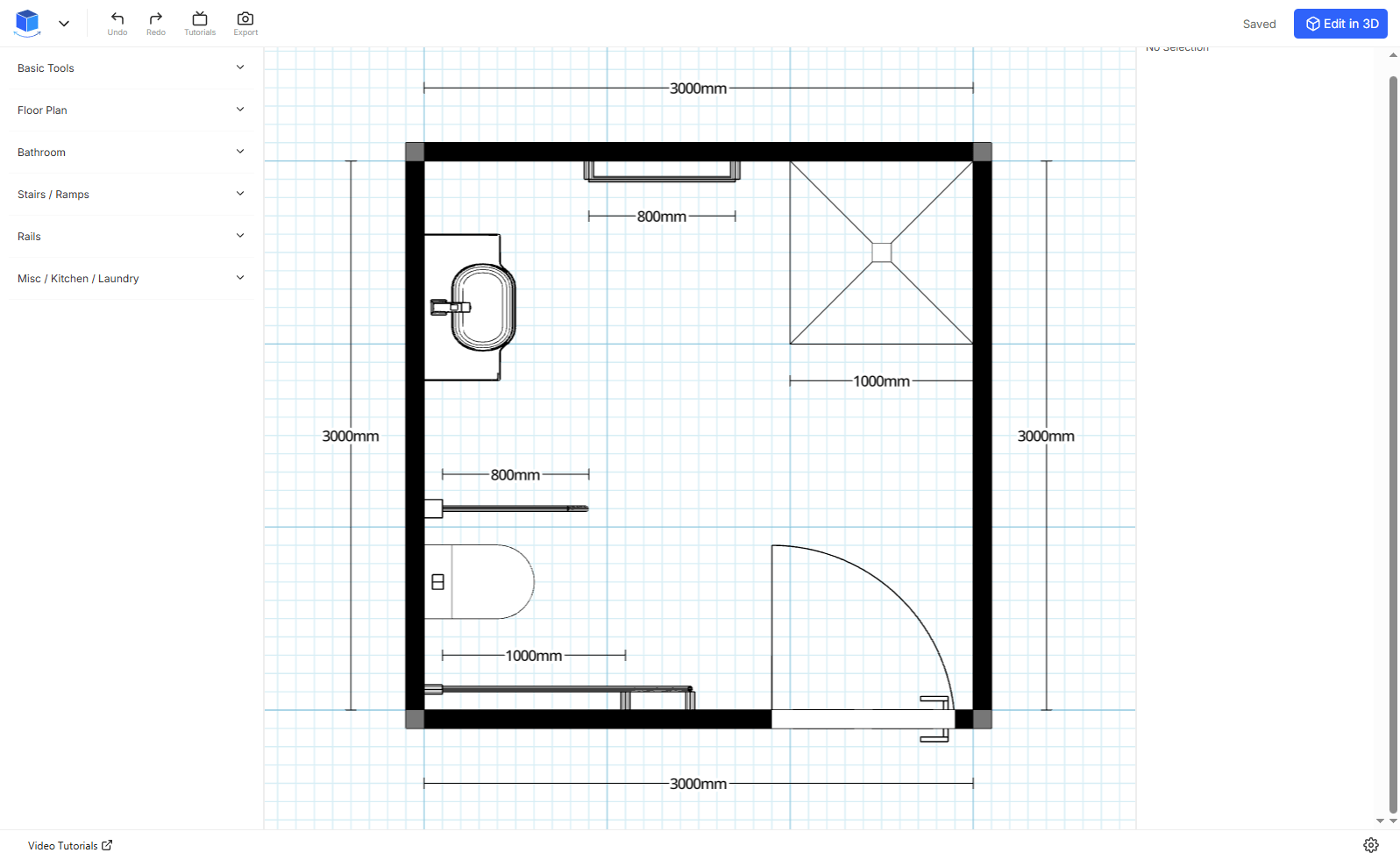

Auto-measured Diagrams
Every dimension calculated and labelled automatically
Submission Ready Reports
Crisp 2D and 3D plans for the NDIS, NHS and other funding bodies
From Assessment to Diagram
Draw the existing bathroom, then duplicate it and modify. Before and after plans, done.
Include everything a builder or funder needs to see: door swing radius, grab rail sizes, shower niches, seats, walls and more — all auto-measured and labelled.
Who is Moddy Suitable for?
Trusted by OTs and technical officers worldwide to design safer, more accessible homes
What Can I Customise About the Bathroom?
- Toilets — Adjust seat height, cistern height and midpoint from the adjacent wall
- Grab rails — All common rail modifications
- Showers & wet rooms — Level access, shower screens and drain lines
- Walls – Add any wall configuration with doors and windows
- 3D preview — Show clients exactly what the modification will look like
Why Professionals Choose Moddy
- Create before and after files easily
- Store all client information in a project folder
- Export crisp 2D or 3D diagrams in black and white
- Achieve technical proficiency against standards
Your Clinical Expertise, Translated into Submission-Ready Plans
Bathroom modifications are among the most common — and most scrutinised — reports OTs submit.
Moddy produces clear, dimensioned plans that funding bodies like the NDIS and NHS expect, so your workflows become easier and faster.
FAQ
- What types of drains can I add to my bathroom in Moddy?
We allow occupational therapists to indicate various types of drains, including:
Center circular drains.
Wall-placed grill drains.
Corner-placed grill drains.These are drawn using a circle or line tool. These options provide flexibility for different bathroom layouts and requirements.
- What features of the toilet in Moddy can I control and measure?
We allow users to control and measure the following toilet dimensions:
- Seat height
- Cistern height
- Length, width, and overall height
- Midpoint measurement from closest adjacent wall
This flexibility supports occupational therapists in specifying toilets based on individual anthropometric needs & brand specific dimensions.
- Why would someone's anthropometrics necessitate a different seat height?
An occupational therapist determines the appropriate seat height based on the measurement from the floor to the popliteal fossa (the back of the knee).
This ensures:
- Proper sitting posture (not too low or too high).
- Safe and effective transfers.
- Variations in lower limb length due to a person’s height affect the optimal seat height.
- What do OTs need to display in an exported bathroom mod?
The required measurements depend on the scope of the bathroom modification:
For minor modifications (e.g., adding grab rails next to a toilet or shower):
- Height of the grab rail.
- Distance of the grab rail from the wall.
- Length of the grab rail.
For major modifications (e.g., extensive redesigns):
- Total width and length of the room (floor plan).
- Dimensions of the shower recess.
- Dimensions of the vanity.
- Distance of the toilet from the wall.
- Distance of the vanity from a corner.
Key dimensions are critical for builders to translate the design into a functional and accurate renovation.
- How does Moddy support the accurate design and measurement of intricate bathroom rails?
Moddy includes an auto-measurement feature for grab rails. This allows users to:
- Edit rail dimensions easily.
- Automatically display dimensions such as:
- Elevation from the floor.
- Length of the rail.
- Height of the rail.
- Toggle specific parameters on or off as needed.
